Aomway Commander V1 Diversity Goggles are high quality FPV goggles that provide an incredibly immersive FPV experience. Ergonomically designed for a comfortable fit, the Commanders feature built in 40CH 5.8GHz diversity receivers, a high resolution 854×480 display, DVR, HDMI input, 1 high gain patch antenna and an omni clover antenna, and much more.

NOTE: Headset battery not included. Any standard FPV Goggle battery is compatible.

Specifications:

• Display:
• FOV: 32°
• Lens: Glass optics (binocular)
• 854×480 ?WVGA?LCD display, LED backlight
• 3D function: Side/Side 3D
• Interpupillary Distance: Adjustable 59-69mm
• Audio Output: Stereo
• Operation: Brightness / contrast / channel selection / display mode /DVR / head tracker
• Video Format: NTSC / PAL auto switch
• HD Input: Support 720p,C-type HDMI port
• DVR Recording:
• Only for RF and AV in mode
• TF card support up to 32GB
• video compression format: MJPG 30fps
• Head Tracker: 2-axis head tracker (only for advanced version)
• Built-in Receiver:
• Dual 40CH high-sensitivity diversity RF module,
• Auto switch to strong signal antenna
• Channel display on screen
• Auto Scan: One key starts auto search the channel of strongest signal
• Working Voltage Range: DC 7-18V (2S-4S), OSD display voltage status
• Interface:
• DC in: standard 5.5*2.1 (inner positive outer negative)
• AV in: 3.5mm four-pole AV jack port
• Audio: 3.5mm three-pole earphone jack port
• Head tracker: PS2 data port
• TF card slot for recording
• Working Environment: 0 – 55°C
• Unit Weight: 172g

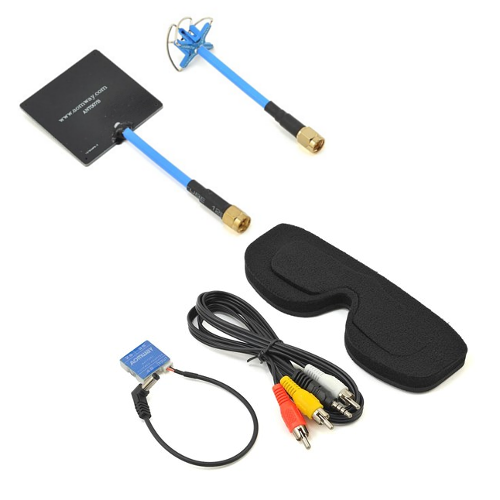

Includes:

• (1) Aomway Commander V1 5.8G 40CH 2D 3D FPV Goggles
• (1) Patch Antenna
• (1) Cloverleaf Antenna
• (1) AV Cable
• (1) Filter Rectifier
• (1) Elastic Band
• (1) Shading Sponge
• (1) User Manual
